Giới thiệu

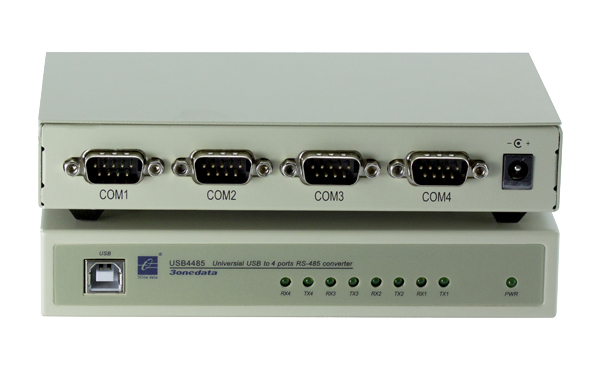

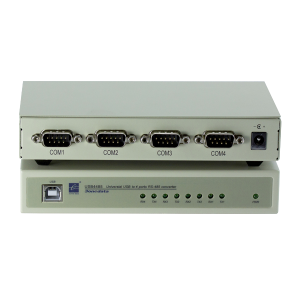

USB4485 is a USB to RS-485/422 interface converter, which can achieve bilateral switching of data between USB interface and 4 RS-485/422 serial ports. The product supports 1 USB interface and 4 RS-485/422 serial ports. Serial port is equipped with 1500W surge protection and 15kV electrostatic protection, which can effectively protect the device from damage. It adopts desktop mounting to meet the requirements of different application fields.
The product provides matched driver program software; USB interface connected to PC will make up a serial COM port in the computer system. PC host can communicate with RS-485/422 serial device via virtual COM port.
Hardware adopts fanless, low power consumption, wide temperature design and has passed rigorous industrial standard tests, which can suit for the industrial scene environment with harsh requirements for EMC. It can be widely used in PLC, Industrial Automatic Control, IC Card Toll Collection System, and Data Acquisition Control System, etc.
Đặc trưng
- Supports bilateral switching of data between 1 USB interface and 4 RS-485/422 serial ports
- Low CPU utilization during usage, stable performance
- Autotunning of serial port signal rate, baud rate of serial port 300bps~230400bps
- Serial port supports 1500W surge protection, 15kV electrostatic protection
- Supports optional 5VDC power supply input or USB power supply (USB and external 5VDC power supply can supply electricity simultaneously)
- Supports -20～60℃ wide temperature operation
Thông số kỹ thuật
| Serial Port |
Standard: EIA RS-485, RS-422
Quantity of serial port: 4 RS-485/422 serial ports
RS-485 signal: D+, D-, GND
RS-422 signal: T+, T-, GND, R+, R-
Baud rate: 300bps~230400bps
Data bit: 7bit, 8bit
Stop bit: 1bit, 2bit
Parity bit: None, Even, Odd, Space, Mark
Flow control: XON/XOFF
Interface form: DB9, Male
Transmission distance: 1200m
Interface protection: 1500W surge protection, 15kV electrostatic protection |
| USB |
Standard: USB 1.1, USB 2.0
Quantity of interfaces: 1 USB interface
USB signal: VCC, DATA+, DATA-, GND
Transmission rate: high speed 480Mbps, full speed 12Mbps
Interface form: USB B-type socket, Female
Transmission distance: 5m |
| Operating System |
Windows 98/ME/2000/XP/Server 2003/Server 2008/7/Vista, Linux, MAC OS-X |
| Indicator |
Power supply indicator, serial port data sending/receiving indicator |
| Power Requirements |
Supports optional USB interface power supply or external 5VDC power supply, both can supply electricity simultaneously;
Thereinto, 5VDC power supply adopts DC round head, external circle is negative pole, and inner core is positive pole |
| Power Consumption |
300mA |
| Environmental Limits |
Operating temperature: -20~60℃
Storage temperature: -40~85℃
Relative humidity: 5%～95% (no condensation) |
| Physical Characteristics |
Housing: metal, IP30 protection grade
Installation: desktop mounting
Dimension (W x H x D): 160mm×28mm×94mm
Weight: 500g |
